Drone Battery
>

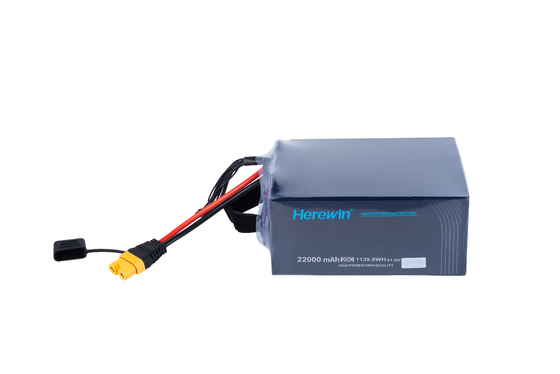

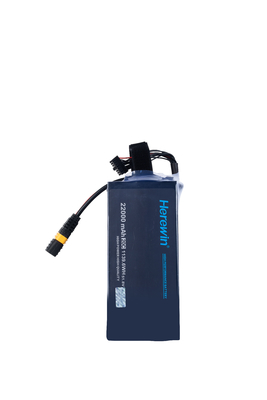

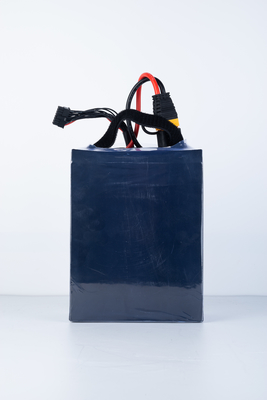

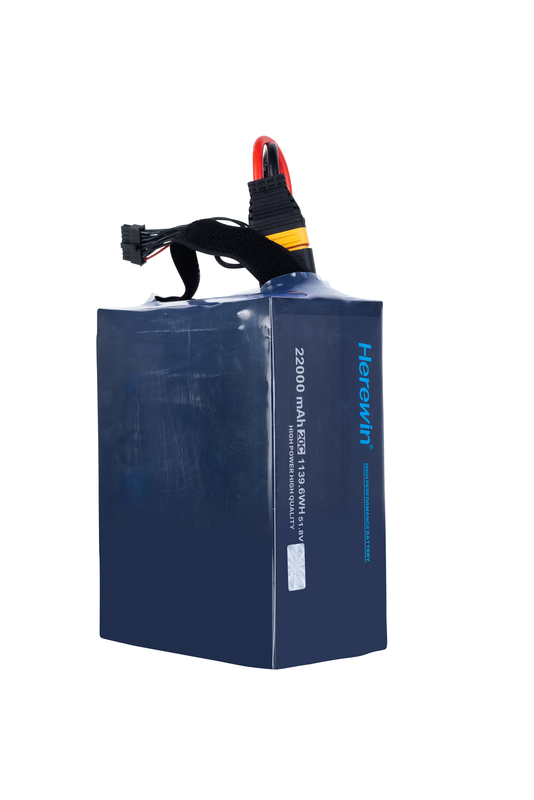

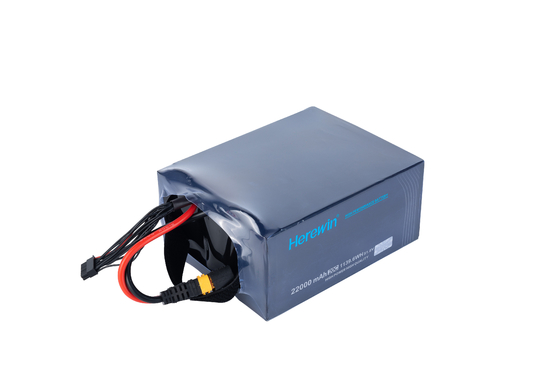

22000mAh 14S 51.8V 25C LiPo Soft Pack UAV Battery / Lipo Drone Battery

22000mAh 14S 51.8V 25C LiPo Soft Pack UAV Battery / Lipo Drone Battery

Brand Name: Herewin
Model Number: 14S1P 22000mAh
MOQ: 1
Price: 275-293USD/pcs
Packaging Details: Carton size: 380*330*140mm Weight:14.2kg (2pcs/carton)
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
MSDS UN38.3 BIS
Nominal Voltage:
51.8V
Configuration:
14S1P
Capacity:
22000mAh
Max Discharge C Rate:
25C
Dimensions:
164.5*93*204mm(T*W*H)
Weight:
6.41kg
Cycle Life:
≥600
Connector Type:
AS150U (Optional)
Charge Rate:
2-3C
Warrenty:
1 Year
Supply Ability:
30000pcs/month
Highlight:

14S Soft Pack UAV Battery

,

51.8V Soft Pack UAV Battery

,

22000mAh lipo drone battery

Product Description

Herewin 22000mAh 14S 51.8V 25C LiPo soft pack battery for UAVs



Product Details

The Herewin 22000mAh 14S 25C 51.8V LiPo battery pack is a high-performance power solution that meets the stringent requirements of advanced drone applications. This battery pack is meticulously designed with a compact and lightweight LiPo cell configuration, ensuring durability without compromising on portability. It boasts an impressive 22000mAh capacity, providing the endurance needed for extended flight operations. The 25C continuous discharge rate offers a reliable and steady power output, even during the most demanding high-performance flights. With a 14S configuration, the battery delivers a nominal voltage of 51.8V, making it perfectly suited for powering sophisticated drone systems that require high-voltage capabilities.



Specification Sheet



Item Data
Nominal Voltage (V) 51.8
Capacity (mAh) 22000
WH 1139.6
Max. Discharge Current 25C
Max. Charge Current 2-3C
Connector Type AS150U (optional)
Dimensions (mm) 164.5*93*204
Net Weight (kg) 6.41
Life Cycle ≥600



22000mAh 14S 51.8V 25C LiPo Soft Pack UAV Battery / Lipo Drone Battery 022000mAh 14S 51.8V 25C LiPo Soft Pack UAV Battery / Lipo Drone Battery 1

Product Features

  • Extended Flight Time
  • Lightweight Design
  • Powerful Performance
  • Versatility
  • Rapid Charging
  • Wide Compatibility

Applications

Herewin LiPo drone batteries offer impressive energy density and high discharge rates, making them ideal for a wide range of commercial and professional UAV applications:

Agriculture Field :

  • Crop sprayer

Commercial Field :

  • Passenger drone
  • Delivery drone
  • Construction drone

Public Safety Field :

  • Law enforcement drone
  • Surveillance drone

Mapping and Surveying Field:

  • Survey drone
  • Aerial photography drone
  • Mineral exploration drone

At Jarwin



We offer a diverse range of product lines, including various specifications of battery cell products, UAV batteries, smart UAV batteries, battery chargers, portable power station, home energy storage systems, industrial and commercial battery energy storage systems, UBS signal base stations batteries, EV power batteries, and electric bicycle batteries.



22000mAh 14S 51.8V 25C LiPo Soft Pack UAV Battery / Lipo Drone Battery 2



With our own battery cell and battery Pack factory, we providing extensive and highly flexible support for the manufacturing of various battery samples, product customization, product solutions, and OEM/ODM services. looking forward to cooperating with you!

Contact Us for More info!
Whatsapp & Tel.: +86 19866906773
Email: info@jarwin.com.cn
