Drone Battery
>

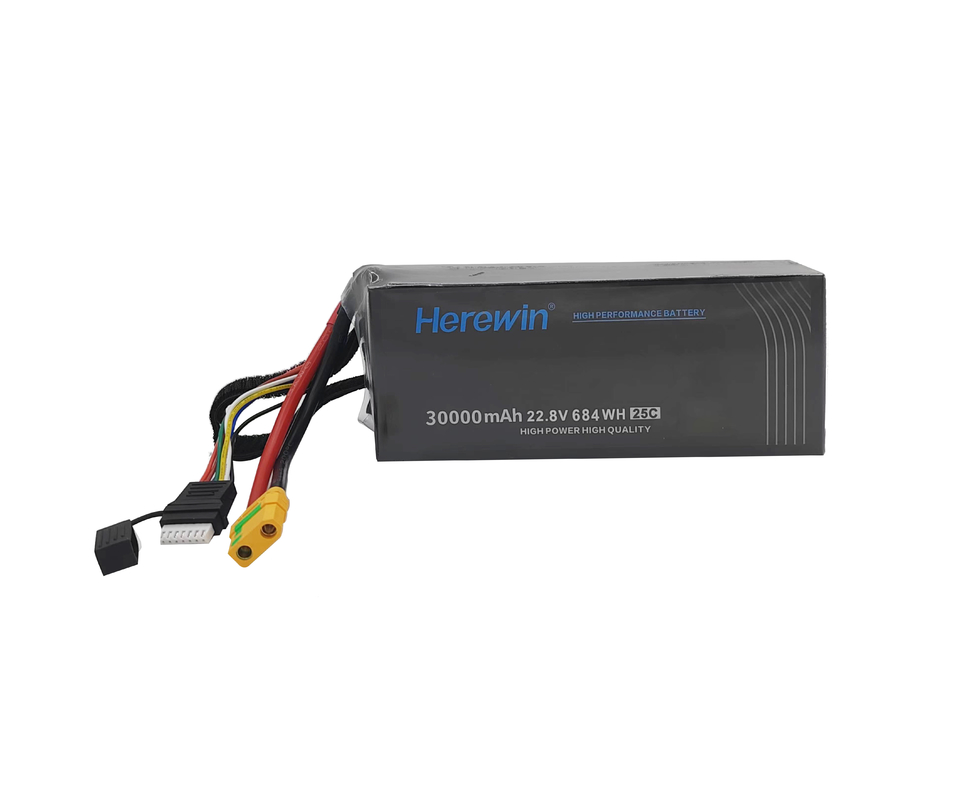

Herewin 30000mAh UAV LiHv Pouch Cell Battery Pack 6S1P 22.8V

Herewin 30000mAh UAV LiHv Pouch Cell Battery Pack 6S1P 22.8V

Brand Name: Herewin
Model Number: 6S1P 30000mAh
MOQ: 1
Price: 154-167USD/pcs
Packaging Details: Carton size: 420*315*150mm Weight:14.8kg (4pcs/carton)
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
MSDS UN38.3 BIS
Nominal Voltage:
22.8V
Configuration:
6S1P
Capacity:
30000mAh
Max Discharge C Rate:
25C
Dimensions:
71.5*11.5*228mm(L*W*H)
Weight:
3.44kg
Cycle Life:
≥750
Connector Type:
XT90-S (Optional)
Charge Rate:
3-4C
Warrenty:
1 Year
Supply Ability:
30000pcs/month
Highlight:

LiHv Pouch Cell Battery

,

Pouch Cell Battery 6S1P 22.8V

,

Herewin 6s 30000mah lipo battery

Product Description

Herewin 30000mAh UAV LiHv Pouch Cell Battery Pack 6S1P 22.8V

Product Description: 30000mAh 6S 25C 22.8V LiHv Soft Battery Pack

The Herewin 30000mAh 6S 25C 22.8V LiHv soft battery pack is a testament to innovation in power solutions for UAVs. This battery pack is designed for high-performance applications where only the best will do. The advanced LiHv technology at its core offers a quantum leap in energy density and cycle life, setting a new standard for UAV endurance.



With a monumental 30000mAh capacity, the Herewin battery pack is built for UAVs that need to stay aloft for longer, making it perfect for demanding missions that require extensive aerial coverage or surveillance. Its 6S configuration ensures a stable 22.8V output, providing a reliable power supply that is essential for the smooth operation of various drone systems.



Specification Sheet



Item Data
Nominal Voltage (V) 22.8
Capacity (mAh) 30000
WH 684
Max. Discharge Current 25C
Max. Charge Current 3-4C
Connector Type XT90-S (optional)
Dimensions (mm) 71.5*11.5*228
Net Weight (kg) 3.44
Life Cycle ≥750



Herewin 30000mAh UAV LiHv Pouch Cell Battery Pack 6S1P 22.8V 0Herewin 30000mAh UAV LiHv Pouch Cell Battery Pack 6S1P 22.8V 1



Key Features:

  • High energy density LiHv technology
  • Exceptional 30000mAh capacity
  • Reliable 6S configuration
  • Powerful 25C continuous discharge rate
  • Flexible and durable soft pack design
  • Lightweight and compact

Application Field:

The 30000mAh 6S 25C 22.8V LiHv soft battery pack is ideally suited for a wide range of medium to large-sized unmanned aerial vehicles (UAVs) that require extended flight times and high performance. Its exceptional capacity and powerful discharge rate make it an excellent choice for demanding applications.



Potential applications include:

  • Aerial photography and videography: For capturing high-quality aerial footage for extended periods.
  • Agricultural drones: For precision agriculture tasks such as crop spraying, monitoring, and data collection.
  • Delivery drones: For transporting goods and packages over longer distances.
  • Inspection and surveillance: For detailed inspections of infrastructure, search and rescue operations, and security monitoring.
  • Mapping and surveying: For creating accurate maps and 3D models of large areas.
  • Film and television production: For aerial cinematography and special effects.
  • Public safety and emergency services: For search and rescue, disaster relief, and firefighting operations.
