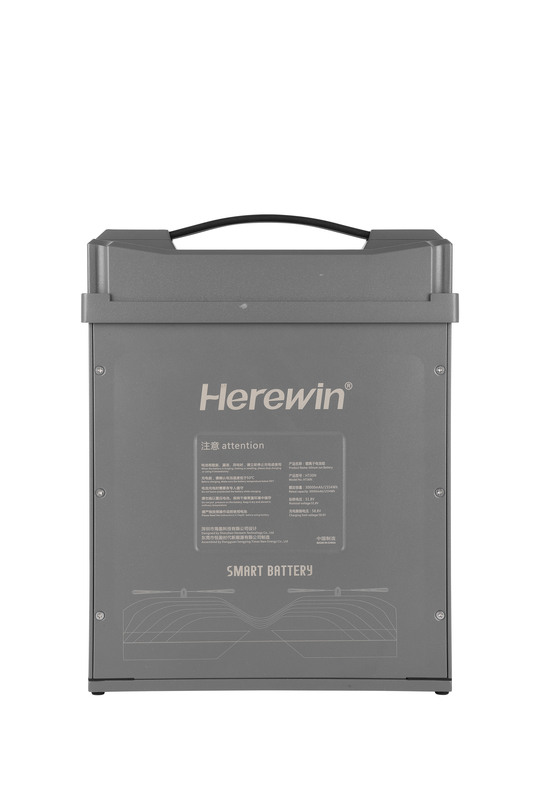

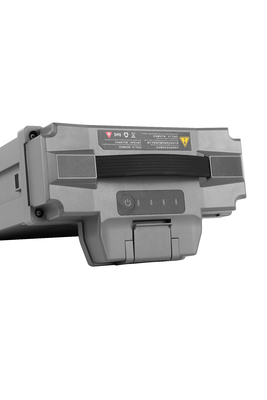

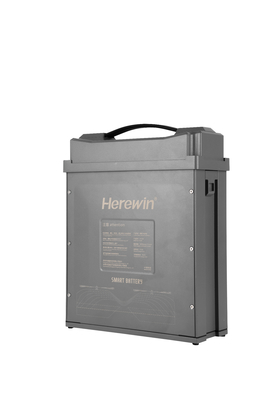

Herewin 14s Battery Pack 22000mah 51.8v Smart Uav Drone Batttery Molex Connector

Herewin 14s Battery Pack 22000mah 51.8v Smart Uav Drone Batttery Molex Connector

Brand Name: Herewin
Model Number: 14S1P 22000mAh
MOQ: 1
Price: 352-381USD/pcs
Packaging Details: Carton size: 325*270*285mm Weight:8.6kg (1pcs/carton)
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
MSDS UN38.3 BIS
Nominal Voltage:
51.8V
Configuration:
14S1P
Capacity:
22000mAh
Max Discharge C Rate:
25C
Dimensions:
88*233*291mm(T*W*H)
Weight:
7.94kg
Cycle Life:
≥600
Connector Type:
AS150U(Optional)
Charge Rate:
3C
Warrenty:
1 Year
Supply Ability:
30000pcs/month
Highlight:

Molex 14s battery pack

,

14s battery pack 51.8v

,

51.8v Uav Drone Batttery

Product Description

Herewin 14s 22000mah 51.8v Smart Uav Drone Batttery - Molex connector

Product Description

The Herewin 14S 22000mAh 51.8V lipo battery is a high-performance power source designed specifically for UAVs and drones. This battery boasts an impressive 22000mAh capacity, delivering a robust 51.8V output to fuel demanding flight operations.



Specification Sheet



Item Data
Nominal Voltage (V) 51.8
Capacity (mAh) 22000
WH 1139.6
Max. Discharge Current 25C
Max. Charge Current 3C
Connector Type Molex
Dimensions (mm) 88*233*291
Net Weight (kg) 7.94
Life Cycle ≥600

Key Features

  • High Capacity: The 22000mAh capacity ensures extended flight times for various drone applications.
  • High Voltage: 51.8V output provides ample power for heavy payloads and high-performance drones.
  • Advanced Safety: Built-in BMS (Battery Management System) safeguards the battery and optimizes performance.
  • Molex Connector: Provides a secure and reliable connection for efficient power transfer.
  • MOS Switch Technology: Enhances protection, efficiency, and control through overcurrent and undervoltage protection, smart charging, remote control, and improved energy efficiency.
  • Smart Monitoring: Connect to the mobile app via Bluetooth for real-time battery status monitoring.

Application Fields

  • High-Performance UAVs: Ideal for drones with heavy payloads, long flight times, and demanding missions.
  • Agricultural Drones: Powers spraying, seeding, and other agricultural applications.
  • Industrial Drones: Supports various industrial tasks requiring extended flight durations.

This battery's combination of high capacity, voltage, fast charging, and advanced safety features makes it a top choice for professionals and enthusiasts seeking optimal performance and reliability in their drone operations.



At Jarwin



We offer a diverse range of product lines, including various specifications of battery cell products, UAV batteries, smart UAV batteries, battery chargers, portable power station, home energy storage systems, industrial and commercial battery energy storage systems, UBS signal base stations batteries, EV power batteries, and electric bicycle batteries.



Herewin 14s Battery Pack 22000mah 51.8v Smart Uav Drone Batttery Molex Connector 0



With our own battery cell and battery Pack factory, we providing extensive and highly flexible support for the manufacturing of various battery samples, product customization, product solutions, and OEM/ODM services. looking forward to cooperating with you!
