Drone Battery
>

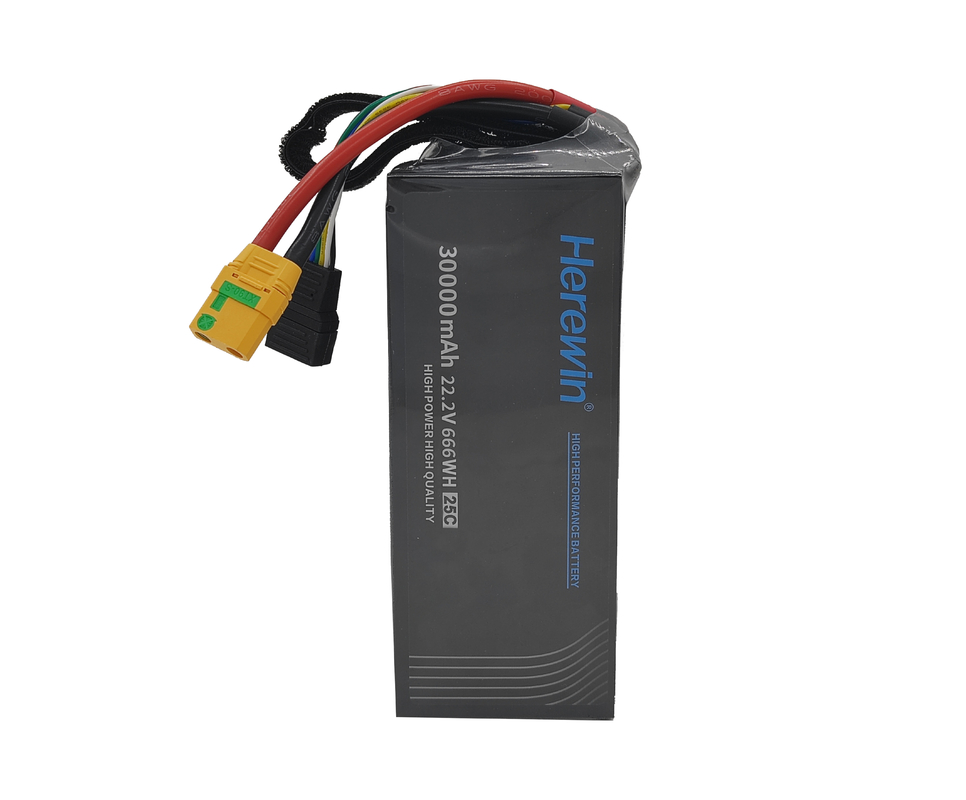

22.2V 6S1P Pouch Soft Pack Uav Battery Pack 30000 MAh 77*107*227mm

22.2V 6S1P Pouch Soft Pack Uav Battery Pack 30000 MAh 77*107*227mm

Brand Name: Herewin
Model Number: 6S1P 30000mAh
MOQ: 1
Price: 161-174USD/pcs
Packaging Details: Carton size: 420*315*150mm Weight:14.8kg (4pcs/carton)
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
MSDS UN38.3 BIS
Capacity:
30000mAh
Voltage:
22.2V
Cell Configuration:
6S1P
Weight:
3.44kg
Product:
UAV Battery
Max. Discharge Rate:
25C
Dimensions:
71.5*110.5*228mm(L*W*H)
Battery Type:
Lithium Polymer
Certifications:
MSDS UN38.3 BIS
Connector:
XT90-S (Optional)
Warranty:
1 Year
Supply Ability:
30000pcs/month
Highlight:

22.2V 6S1P uav battery pack

,

30000 mAh uav battery pack

,

3.5kg uav battery

Product Description

Herewin 22.2V 6S1P Pouch Soft Pack Battery 30000mAh



Product Details



The Herewin 30000mAh 6S 25C 22.2V LiPo battery is a high-capacity solution that empowers drones for efficient plant protection. This soft-pack battery, crafted with precision for UAVs, offers a robust 30000mAh capacity for extended missions, ensuring thorough coverage of agricultural lands. Its 22.2V voltage and 25C discharge rate are tailored to support professional drone operations, delivering a consistent power output for reliable performance. The Herewin battery's layered manufacturing process ensures a stable discharge profile, making it a trusted power source for agricultural drone applications.



Specification Sheet



Item Data
Nominal Voltage (V) 22.2
Capacity (mAh) 30000
WH 666
Max. Discharge Current 25C
Max. Charge Current 2-3C
Connector Type XT90-S (optional)
Dimensions (mm) 71.5*110.5*228
Net Weight (kg) 3.44
Life Cycle ≥600



22.2V 6S1P Pouch Soft Pack Uav Battery Pack 30000 MAh 77*107*227mm 0



Product Features

  • Large capacity for extended flight time and stable performance.
  • Lightweight design to improve drone flight time and maneuverability.
  • Higher energy density for increased power and extended flight time.
  • Customizable shapes to fit various drone designs.
  • High discharge C rate and excellent compatibility.
  • Supports various connectors including AS150U, XT90S, AS150, AS120, QS9, QS10, and more.

Applications

Herewin LiPo drone batteries offer impressive energy density and high discharge rates, making them ideal for a wide range of commercial and professional UAV applications:

  • Crop dusting drone
  • Topographic survey drone
  • Police drone
  • Air taxi
  • Delivery drone
  • Surveillance drone
  • Aerial imaging drone
  • Construction site drone
  • Mineral exploration drone

At Jarwin



We offer a diverse range of product lines, including various specifications of battery cell products, UAV batteries, smart UAV batteries, battery chargers, portable power station, home energy storage systems, industrial and commercial battery energy storage systems, UBS signal base stations batteries, EV power batteries, and electric bicycle batteries.



22.2V 6S1P Pouch Soft Pack Uav Battery Pack 30000 MAh 77*107*227mm 1



With our own battery cell and battery Pack factory, we providing extensive and highly flexible support for the manufacturing of various battery samples, product customization, product solutions, and OEM/ODM services. looking forward to cooperating with you!
