22.8V 30000mAh Pouch Cell High Voltage Battery Pack Herewin 6S1P

22.8V 30000mAh Pouch Cell High Voltage Battery Pack Herewin 6S1P

Brand Name: Herewin
Model Number: 6S1P 30000mAh
MOQ: 1
Price: 154-167USD/pcs
Packaging Details: Carton size: 420*315*150mm Weight:14.8kg (4pcs/carton)
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
MSDS UN38.3 BIS
Nominal Voltage:
22.8V
Configuration:
6S1P
Capacity:
30000mAh
Max Discharge C Rate:
25C
Dimensions:
77*107*227mm(L*W*H)
Weight:
3.5kg
Cycle Life:
≥750
Connector Type:
XT90-S (Optional)
Charge Rate:
3-4C
Warrenty:
1 Year
Supply Ability:
30000pcs/month
Highlight:

Herewin 6s1p lipo battery

,

30000mAh pouch cell battery

,

30000mAh high voltage battery pack

Product Description

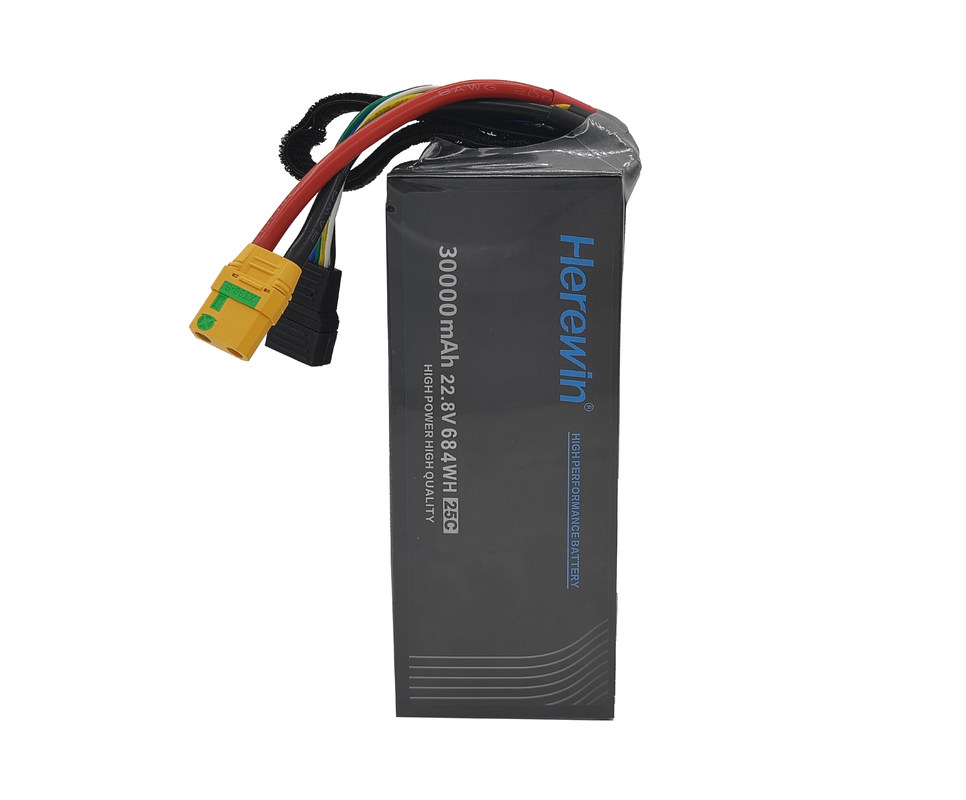

Herewin 6S1P 22.8V 30000mAh Pouch Cell High Voltage Battery Pack



Product Description: 30000mAh 6S 25C 22.8V LiHv Soft Battery Pack

The Herewin 30000mAh 6S 25C 22.8V LiHv soft battery pack is a high-performance power solution that raises the bar for UAV applications. This battery pack is engineered to provide a stable 22.8V output and a 25C continuous discharge rate, ensuring that your UAV has the power it needs to perform under demanding conditions. The 30000mAh capacity is designed for UAVs that require extended flight times, making it ideal for missions that demand endurance and high energy output. The soft pack design offers flexibility and durability, accommodating various drone platforms with ease. With its lightweight and compact form factor, this LiHv battery pack is optimized for drone performance, delivering the power you need without adding unnecessary weight.



The 25C continuous discharge rate of this battery pack is engineered to handle high current draw, delivering consistent power even when the UAV is performing at its peak. The soft pack design not only offers flexibility to fit various drone platforms but also adds a layer of durability to withstand the challenges of field operations.



Specification Sheet



Item Data
Nominal Voltage (V) 22.8
Capacity (mAh) 30000
WH 684
Max. Discharge Current 25C
Max. Charge Current 3-4C
Connector Type XT90-S (optional)
Dimensions (mm) 77*107*227
Net Weight (kg) 3.5
Life Cycle ≥750



22.8V 30000mAh Pouch Cell High Voltage Battery Pack Herewin 6S1P 022.8V 30000mAh Pouch Cell High Voltage Battery Pack Herewin 6S1P 1



Key Features:

  • High energy density LiHv technology
  • Exceptional 30000mAh capacity
  • Reliable 6S configuration
  • Powerful 25C continuous discharge rate
  • Flexible and durable soft pack design
  • Lightweight and compact

Application Field:

The 30000mAh 6S 25C 22.8V LiHv soft battery pack is ideally suited for a wide range of medium to large-sized unmanned aerial vehicles (UAVs) that require extended flight times and high performance. Its exceptional capacity and powerful discharge rate make it an excellent choice for demanding applications.



Potential applications include:

  • Aerial photography and videography: For capturing high-quality aerial footage for extended periods.
  • Agricultural drones: For precision agriculture tasks such as crop spraying, monitoring, and data collection.
  • Delivery drones: For transporting goods and packages over longer distances.
  • Inspection and surveillance: For detailed inspections of infrastructure, search and rescue operations, and security monitoring.
  • Mapping and surveying: For creating accurate maps and 3D models of large areas.
  • Film and television production: For aerial cinematography and special effects.
  • Public safety and emergency services: For search and rescue, disaster relief, and firefighting operations.
